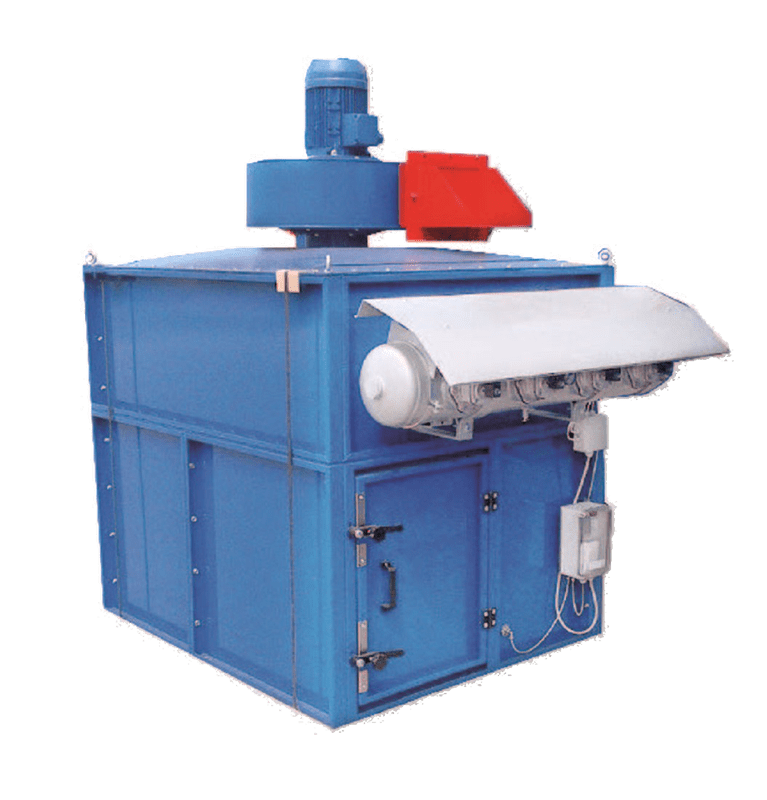

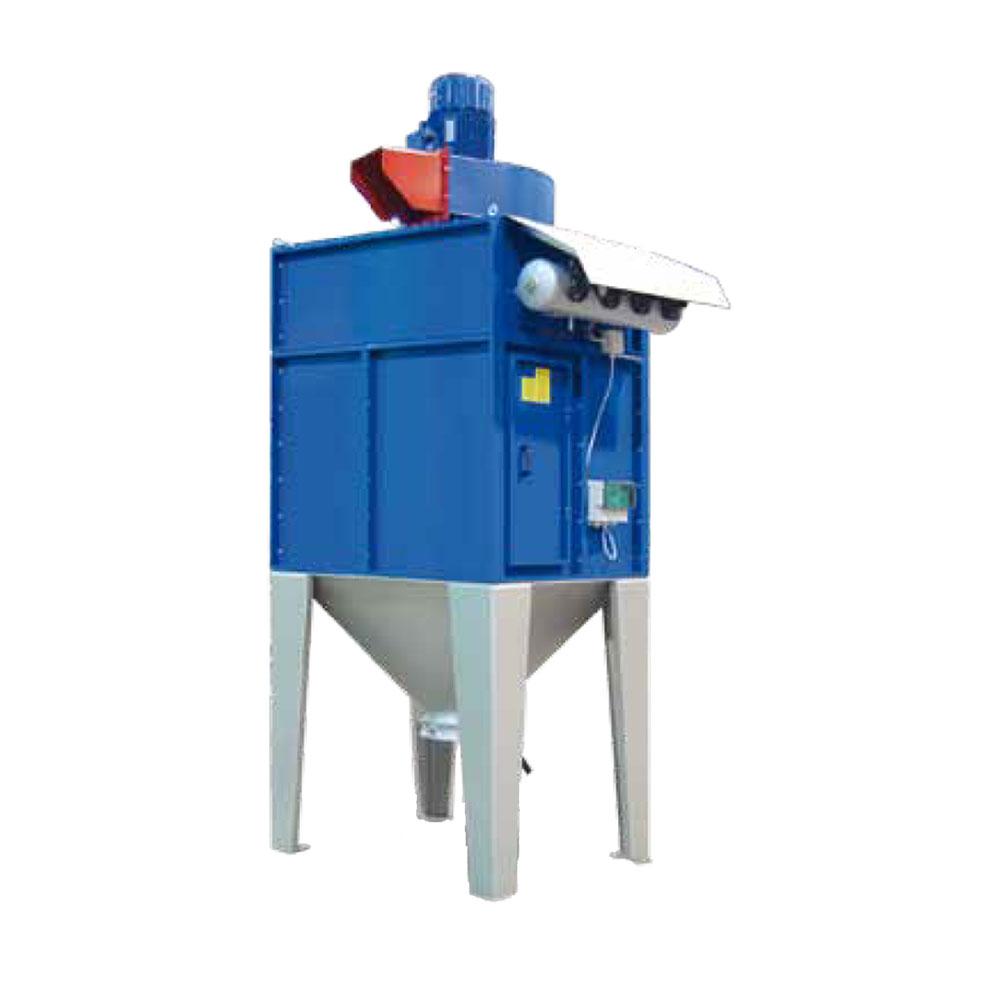

Rectangular dust filters

Dry batch filter supplied in 3 different sizes with a filtering surface of 50, 72 or 86 m², made of mild steel with full immersion air jet cleaning system. EKO filter is designed for dust collection from tack mixer inlet during the loading procedure, from crushers or even from outflow points of fine aggregates during their discharging or loading process.

The air is sucked through vents from the points that the dust exudes into the environment. The retained dust on the filter is collected in a special dust collector at its base. Accessing the cartridges can be easily done by the maintenance door placed on one side.

AVAILABLE MODELS / DIMENSIONS

 Type

A
(mm)

B (max)
(mm)

H
(mm)

H1
(mm)

EKO.50.A

1260

740

3350

-

EKO.50.B0

1260

-

-

1500

EKO.72.A

1560

900

3810

-

EKO.72.B0

1560

-

-

1800

EKO.86.A

1760

900

4010

-

EKO.86.B0

1760

-

-

2000

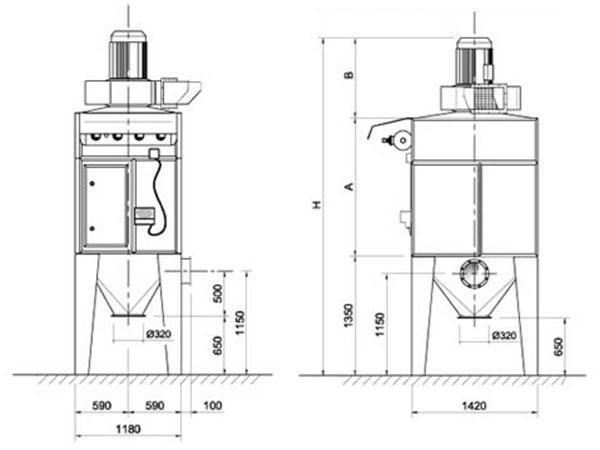

rectangular dust filters pic1

EKO models with the letter "B0" in the table are without electric fan.
