Thermo-Tuff

TEMPERATURE MEASUREMENT INSIDE MIXERS AND TANKS

The Hydronix Thermo-Tuff is a fast response, high precision, linear temperature sensor for use in industrial processes. Designed for measurement in bulk materials and mixing applications, it is especially suited for use in the harshest of environments such as concrete mixers and aggregate bins.

This sensor outclasses its rivals by taking advantage of high speed, high accuracy electronics, thermally isolated from their surroundings to achieve the fastest possible temperature response.

Typical applications for the Thermo-Tuff include sand, cement, concrete, asphalt and aggregates.

TECHNICAL FEATURES

Body: cast stainless Steel
Sensing Head: Hardened Steel
Dimensions: Length 115mm, diameter 24mm

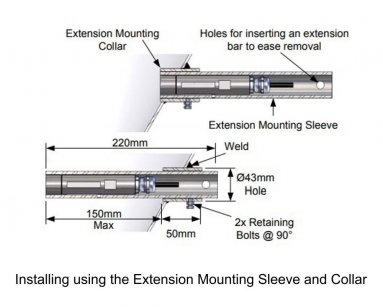

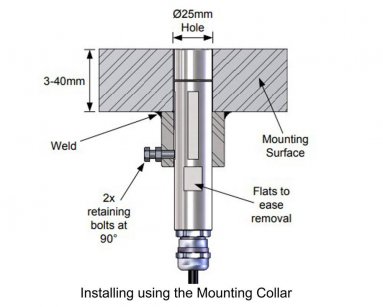

Installation: The Thermo-Tuff temperature sensor has been designed for mounting in a mixer or a bin or silo. It is easy to install using the Standard Mounting Collar or Extension Mounting Sleeve and Collar.
Measurement Range: 0-80 0C
Response Time: Installed T90: Industry leading 56 seconds
Power Supply: Via the RS-485 port
Cable: Supplied with a 4 meter two core screened cable

ADVANTAGES

  • Easy and fast installation
  • Continuous 4-20mA signal, connectible with all automation systems
  • Calibration is not needed
  • Integrated and durable construction
  • Economic solution
