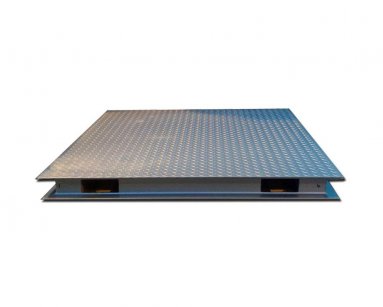

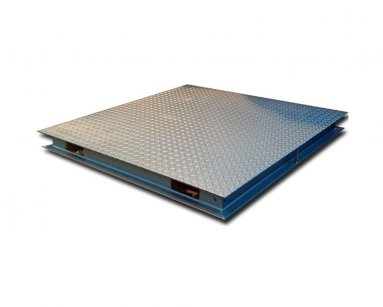

Fork-Guide VWFG Portable Platform Scale

The VWFG Portable Platform Scale can be easily transported by a fork lift. ST-37 construction type platform, Powder Coated Finish, 4 stainless steel Load Cells, OIML, IP67. It is placed on four high adjustable stainless steel rubber based mounting feet. Rated weighing capacity ranging from 150 to 3.000Kg.

The VWFG Platform Scales have built-in forklift guides that allow the platform to be quickly and easily picked up and moved to another location, providing flexibility to weigh wherever it is needed. They are built to order in the UK with high quality specifications.

TECHNICAL SPECIFICATIONS

Powder Coated Finish, 4 stainless steel Load Cells, OIML, IP67, Mild Steel with 4,5mm durbar top plate.

Available Dimensions 1250mm x 1250mm, 1500mm x 1250mm, 1500mm x 1500mm, 1800mm x 1250mm, 1800mm x 1800mm, 2100mm x 1500mm
Platform Height ≈140mm
Capacity Options 150kg, 300kg, 600kg, 1000kg, 1500kg, 2000kg, 3000kg

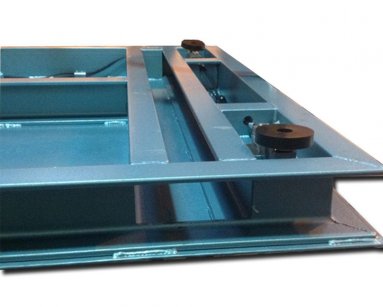

Construction Mild Steel ST37, 100 x 50 x 5mm Channel Frame with durbar 4,5mm top plate, Professional tough powder-coated finish
Load Cells 4 x Flintec SLB14 from Stainless Steel, 5m steel armored braiding high quality cable, OIML Certified & IP67 Protection Rate
Junction Box VWJB4P, IP65, Sealed junction box and summing board
Load Cell Feet Height Adjustable, stainless steel rubber based mounting feet
