Butterfly Valves

Butterfly valves are widespread in the industry, especially in the construction material industries where they are mainly used in silos and in cement and water scales. The valve can be supplied with either manual lever or pneumatic drive. Available dimensions are ranging from Φ100mm to Φ300mm.

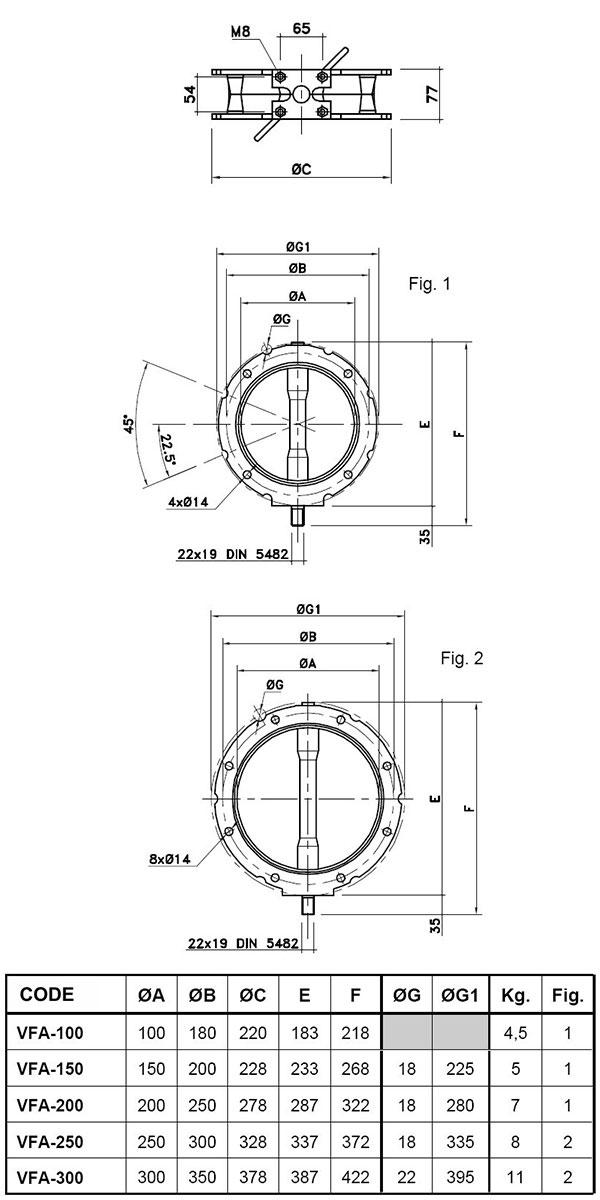

AVAILABLE VALVE MODELS - TECHNICAL SPECIFICATIONS

valvides petaloudas types

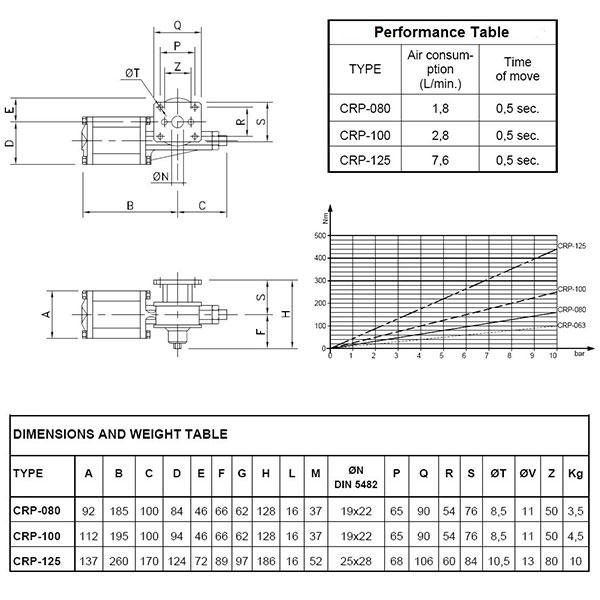

AVAILABLE PNEUMATIC DRIVES - TECHNICAL SPECIFICATIONS

valvides petaloudas mixanismoi eng

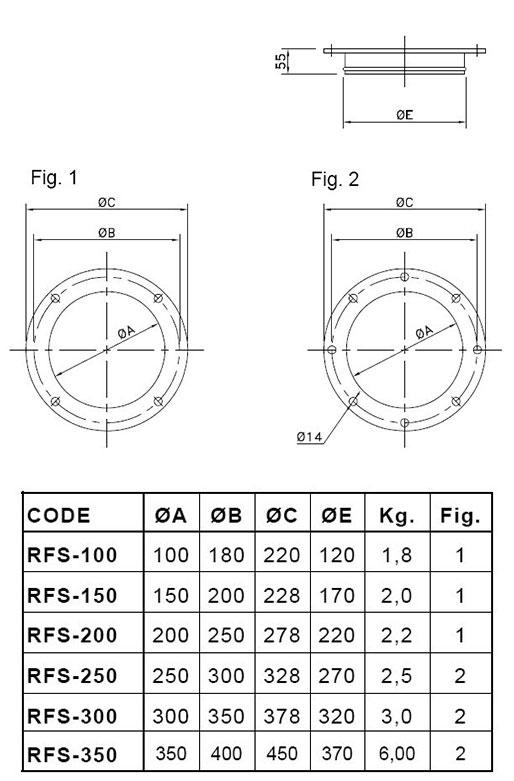

AVAILABLE FLANGE SPIGOTS

Required in order to connect a rubber join to the valve outlet.

valvides petaloudas proektaseis eng

AVAILABLE ACCESSORIES FOR BUTTERFLY VALVES

  • Pneumatic drive available with solenoid valves operating in AC or DC voltages from 12 to 220 V. This should be specified when ordering.
  • EPDM sealing flange may optionally be ordered.
  • Our Butterfly valves can also be used for liquids. In this case, an internal sealing gasket must be applied, but this is optional and should be specified when ordering.
  • Limit switch box for the indication of the valve’s position (open-closed) is optionally provided with the pneumatic drive.
