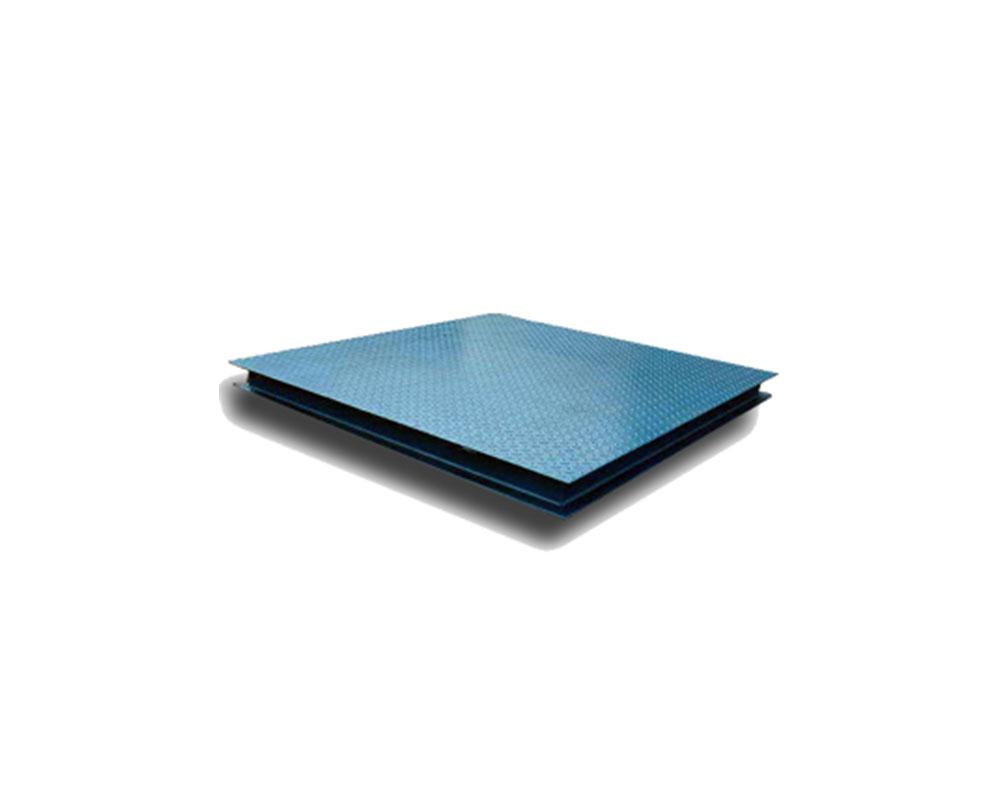

High Capacity VWHD Platform Scale

Standard ST-37 construction type platform, Powder Coated Finish, 4 stainless steel Load Cells, OIML, IP68. It is placed on four high adjustable stainless steel rubber based mounting feet. Rated weighing capacity ranging from 150Kg to 5.000Kg.

The VW range is designed and built to order in the UK with high quality specifications to ensure a long-lasting reliable operation lifespan.

TECHNICAL SPECIFICATIONS

Professional tough powder-coated finish, IP67 Rated and OIML Approved Load Cells, 4,5mm channel durbar top plate for easily accessing the Load Cells junction box. Ramps or a Pit Frame can be optionally included for all dimensions.

Available Dimensions 1000mm x 1000mm, 1250mm x 1000mm, 1250mm x 1250mm, 1500mm x 1250mm, 1500mm x 1500mm, 1800mm x 1250mm, 1800mm x 1500mm, 2100mm x 1500mm, 2500mm x 1250mm
Platform Height ≈140mm
Capacity Options 100kg, 150kg, 300kg, 600kg, 1000kg, 1500kg, 2000kg, 3,000kg, 4,000kg, 5,000kg
Construction Mild Steel ST37, 100 x 100 x 5cm Channel Frame with 4,5mm durbar top plate, Professional tough powder-coated finish
Load Cells 4 x Flintec SB14 from Stainless Steel, 5m steel armored braiding high quality cable, OIML Certified & IP68 Protection Rate
Junction Box VWJB4P, IP65, Sealed junction box and summing board
Load Cell Feet Height Adjustable, stainless steel rubber based mounting feet

OPTIONAL EQUIPMENT

  • Pit frame for underfloor installation
  • Guides for Clark forks for easy transportation
  • Paint in your preferred RAL color
  • Ramps for easy access
  • Smooth instead of durbar top plate
