Skip Weighing VWSKIP Platform Scale

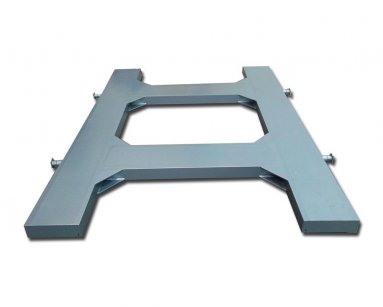

The VWSKIP Platform Scale is specially designed to provide accurate and reliable weighing whilst withstanding the demands of skip (container) loading as it provides special over size channel frames. ST-37 construction type platform, Powder Coated Finish, 4 stainless steel Load Cells, OIML, IP68. Rated maximum skip capacity of 15.000Kg.

They are built to order in the UK with high quality specifications and operate using Cardinal’s SB-type Load Cells.

TECHNICAL SPECIFICATIONS
Platform Weight 300kg
Available Dimensions 250 x 180 x 18 cm
Platform Height ≈130mm
Capacity Options 15,000kg
Construction Mild Steel ST37, H-shaped 290 x 90cm frame manufactured by UPN 120, Professional tough powder-coated finish
Load Cells 4 x Cardinal SB from Stainless Steel, 10m steel armored braiding high quality cable, OIML Certified & IP68 Protection Rate
Junction Box VWJB4P, IP65, Sealed junction box and summing board

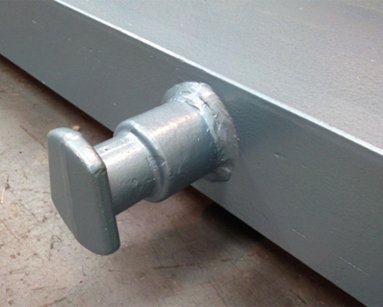

Load Cell Feet Specially designed Mild Steel spreader plates
