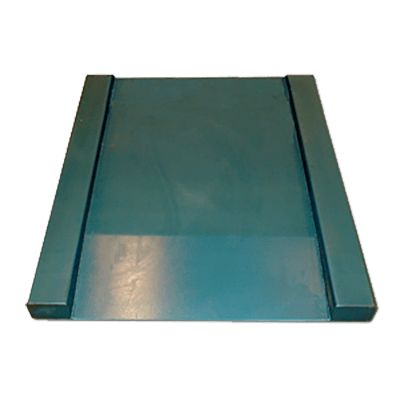

Drive-Through VWDΤ/I Platform Scale with Two Ramps

The VWDT/I Platform Scale is equipped with ramps from both sides. ST-37 construction type platform, Powder Coated Finish, 4 stainless steel Load Cells, OIML, IP67. It is placed on four high adjustable stainless steel rubber based mounting feet. Rated weighing capacity ranging from 150 to 2.000Kg.

The VWDT/I Platform Scales have a height of only 40mm and are equipped with two built-in ramps, one for entry and one for exit.

TECHNICAL SPECIFICATIONS
Available Dimensions 800mm x 800mm, 1000mm x 1000mm, 1250mm x 1250mm, 1500mm x 1500mm
Platform Height ≈40mm
Capacity Options 100kg, 150kg, 300kg, 600kg, 1000kg, 1500kg, 2000kg
Construction Mild Steel ST37, 120mm Channel Frame with durbar 5mm top plate, Professional tough powder-coated finish
Load Cells 4 x Flintec SLB14 from Stainless Steel, 5m steel armored braiding high quality cable, OIML Certified & IP67 Protection Rate
Junction Box VWJB4P, IP65, Sealed junction box and summing board
Load Cell Feet Height Adjustable, stainless steel rubber based mounting feet
Ramp Width Built-in, 150mm each
