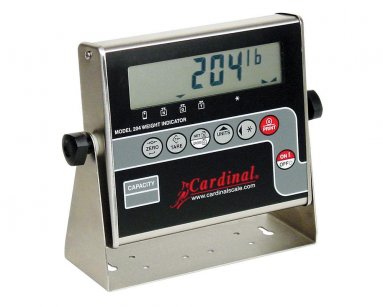

204 Storm

Ideal for floor and bench scales, the 204 indicator features a large LCD for high visibility. Selectable weight units, along with Gross, Tare, and Net conversion functions as well as metric conversion make this indicator suitable for many applications. Whether a static installation or a portable scale, the 204 can be powered up to 3 ways: AC, Alkaline batteries, or rechargeable Ni-Cad batteries that charge via a built-in battery charging circuit.

A bi-directional RS232 serial port, custom label/ticket format, auto shut-off and sleep modes to conserve battery power allows you to tailor the 204 to your needs.

The 204 STORM features a stainless steel enclosure as well as an incorporated Ni-Cd battery recharger.

It supports up to 4 350-ohm load cells and can also be used as a portable weighing indicator since network supply is not required. NTEP legal-for-trade and OIML certified.

SPECIFICATIONS

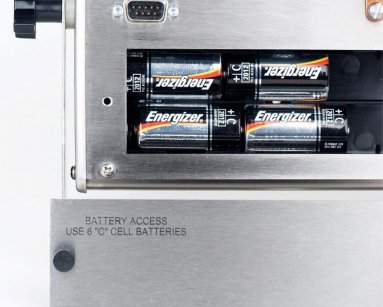

Power Requirements: 115 VAC 60 Hz adapter, or 230 VAC 50/60 Hz or 6 “C” cell alkaline or rechargeable Ni-Cad batteries
Enclosure Construction: 304 Stainless Steel
Dimensions: 204mm W x 168mm H x 54mm D
Protection Rating: IP52
Weight: 1380 gr
Operating Conditions: Operating Temperature: -10 to +40°C
Operating Humidity: 90% non-condensing (maximum)
Display: LCD, 6 digits, 7-segment, 25 mm height
Transducer Excitation: 8 VDC
Signal Input Range: From -0.6mV/V to +3 mV/V
Number of Load Cells: Up to 4 of 350 Ohm each
Load Cell Cable Length: 10m maximum
Division Value: 1, 2, 5, 10 or 20 x 1, 0.1, 0.01, 0.001
Sensitivity: 1.2 uV/Display Division
Resolution: 5000 Divisions (Certified), 10000 Divisions (non-Certified)
Sample Rate: 1 to 10 Samples per Second (Selectable)
Auto Zero Range: 0 to 18 display divisions
Stability Detector: YES
Keypad: Color-coded membrane type, 7-keys
Standard I/O: (1) bi-directional RS232 series
