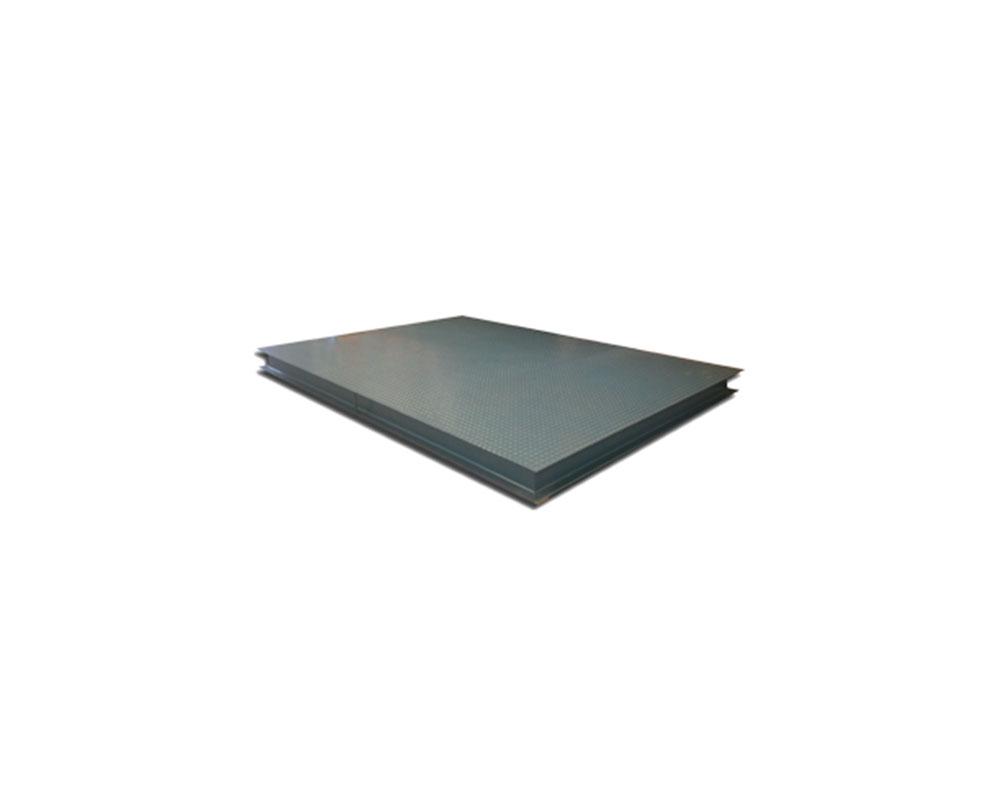

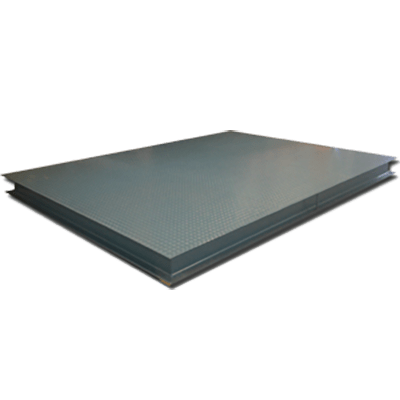

Extra High Capacity VWEHD Platform Scale

Extra high capacity ST-37 construction type platform, Powder Coated Finish, 4 stainless steel Load Cells, OIML, IP68. It is placed on four high adjustable stainless steel rubber based mounting feet. Rated weighing capacity ranging from 6.000Kg to 10.000Kg.

TECHNICAL SPECIFICATIONS

Professional tough powder-coated finish, IP68 Rated and OIML Approved Load Cells, 6mm durbar top plate. Α Pit Frame can be optionally included for underfloor installation.

Available Dimensions 1250mm x 1250mm, 1500mm x 1250mm, 1500mm x 1500mm, 1800mm x 1250mm, 1800mm x 1500mm, 2100mm x 1500mm
Platform Height ≈166mm
Capacity Options 6,000kg, 10,000kg
Construction Mild Steel ST37, 125 x 65 Channel Frame with 6mm durbar top plate, Professional tough powder-coated finish
Load Cells 4 x SB from Stainless Steel, 5m steel armored braiding high quality cable, OIML Certified & IP68 Protection Rate
Junction Box VWJB4P, IP65, Sealed junction box and summing board
Load Cell Feet Height Adjustable, stainless steel rubber based mounting feet

OPTIONAL EQUIPMENT

  • Pit frame for underfloor installation
  • Guides for Clark forks for easy transportation
  • Paint in your preferred RAL color
  • Ramps for easy access
  • Smooth instead of durbar top plate
