The VWDI/E Platforms include one separate ramp from one side. Ideal for weighing pallets or trolleys in industrial environments. ST-37 construction type platform, Powder Coated Finish, 4 stainless steel Load Cells, OIML, IP67. It is placed on four high adjustable stainless steel rubber based mounting feet. Rated weighing capacity ranging from 150 to 2.000Kg.

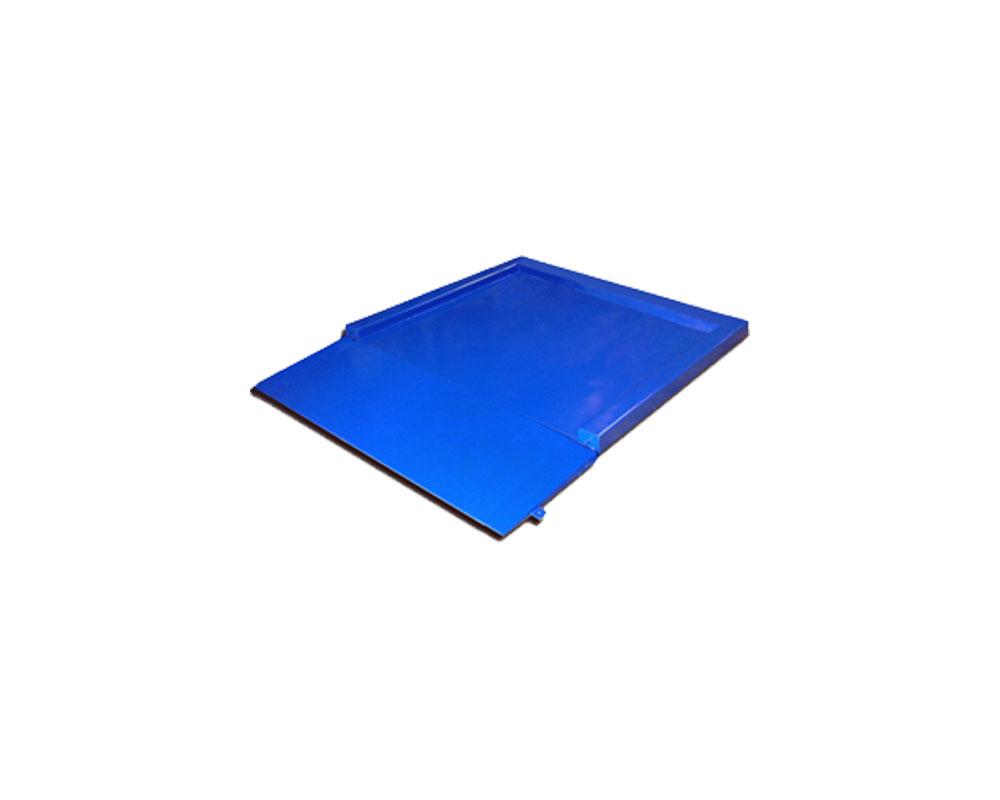

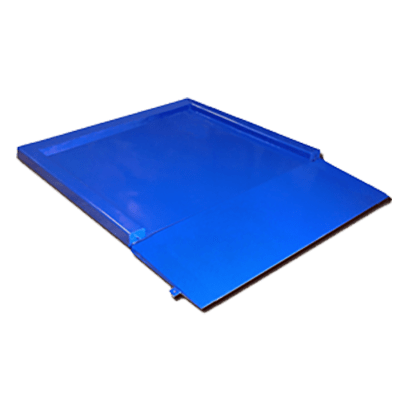

Drive-In VWDI/E Plarform Scale with Separate Ramp
The VWDI/E Weighing Platforms have an extra-long ramp that provides a shallow loading gradient, making it easy for operators to load onto the scale.
Available Dimensions 800mm x 800mm, 1000mm x 1000mm, 1250mm x 1250mm, 1500mm x 1500mm Platform Height ≈40mm Capacity Options 100kg, 150kg, 300kg, 600kg, 1000kg, 1500kg, 2000kg Construction Mild Steel ST37, 120mm Channel Frame with durbar 5mm top plate, Professional tough powder-coated finish Load Cells 4 x Flintec SLB14 from Stainless Steel, 5m steel armored braiding high quality cable, OIML Certified & IP67 Protection Rate Junction Box VWJB4P, IP65, Sealed junction box and summing board Load Cell Feet Height Adjustable, stainless steel rubber based mounting feet Ramp Width Separate, 300mm
