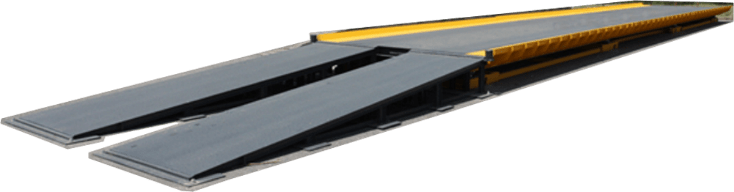

Fully Portable Steel Deck Weighbridge

RWB - DIY

The PRWB-DIY is a portable surface mounted weighbridge suitable for weighing the most kinds of trucks. Its steel deck makes the DIY a cost-effective, yet sturdy scale solution. This weighbridge comes fully assembled with factory mounted load cells, reducing the average installation time by half. The top removable covers on the deck of the weighbridge offer easy access to the load cells and junction boxes for the instantaneous maintenance and service of the equipment.

It is an ideal solution for companies that wish to transfer their equipment from one project to another, easily, quickly and at the lowest cost. No infrastructure work is required except a horizontal and aligned concrete or asphalt deck that can withstand the maximum weight of trucks passing over it.

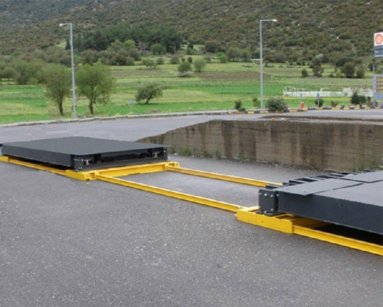

The transported, fully metallic weighbridges are mounted on a metal frame that evenly distributes the loads on the ground and therefore no foundation works are needed. The frame is secured to the asphalt or concrete with plugs and the same applies for the metal ramps.

Features

  • Consists of equal-sized drive decks and side modules, bolted on each of the sides of the drive decks.
  • Factory pre-mounted OIML mounted load cells.

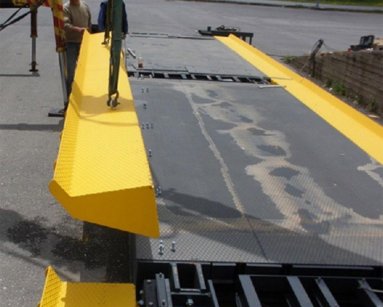

  • Top access to weighing equipment (load cells and junction box) through the removable covers on the deck.
  • No need for special foundations.
  • This weighbridge can be installed on a concrete or asphalt surface.
  • Completely steel and modular construction.
  • Ideal for temporary sites, construction, agricultural, recycling sites and a plentitude of other applications
  • Side modules working as side barriers preventing accidents.

Specifications

Platform Length

6m - 18m *

Platform Width

3m*

Platform Height

360mm

Ramp Height

360mm - 500mm **

Steel Type

ST37

Scale Capacity

up to 120t

Loading Capacity

10t - 20t per truck axle

*    other lengths and dimensions available upon request
**  depending on the foundations
