190 Storm Wash-Down Indicator

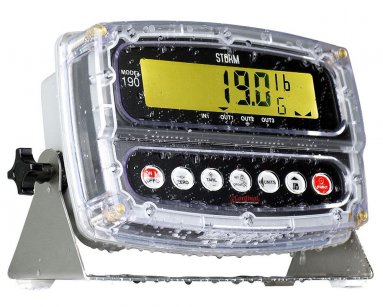

Built for extreme-use applications in the weighing industry, the 190 STORM’s IP69K-rated polycarbonate enclosure withstands high-temperature (up to 176º F / 80º C), high-pressure wash downs (1450 PSI).

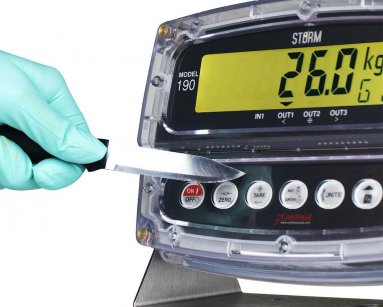

The 190 STORM features capacitive touch keys, 25 mm-high clearly visible LCD digits, built-in RS232 communications port, and versatile power options: AC, DC, and rechargeable battery. Perfectly suitable for the food, chemical and pharmaceutical industries.

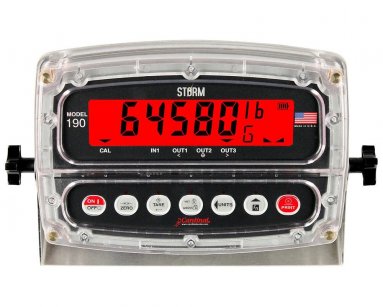

The 190 STORM’s bright, vivid display changes color automatically as the pre-assigned target weights are reached. The operator knows immediately when they’ve reached the acceptable weight range based on the color changes: amber (Under), green (Accept), or red (Over). OIML & NTEP Certified.

SPECIFICATIONS

Power Requirements: 100 to 240 VAC (50/60 Hz) at 0.4A Max. / 190DC: 10.5 to 30 VDC 1.0A Max.
Optional Rechargeable Battery Continuous Operation Run Times: 80 hours (Running single Load Cell). Battery life can be extended by using the SLEEP and AUTO-OFF operation set.
Enclosure Type: Polycarbonate and ABS enclosure, IP69K-rated wall or desk-mount
Enclosure Size: 239 mm W x 163mm H x 93mm L
Operating Conditions: Operating Temperature: -10 to +40 ºC
Operating Humidity: 90% Non-Condensing (Maximum)
Display: 6 digit, 7-segment high backlit LCD with 25.4 mm height
Transducer Excitation: 5.18 VDC
Singal Input Range: >0.5 mV min. up to 40 mV max. (with dead load boost)
Number of Load Cells: 6 each, 350 Ohm minimum Resistance
Load Cell Cable Length: 10 m maximum (without sense lines)
Division Value: 1, 2, or 5 x 10, 1, 0.1, 0.01, 0.001 commercial use
0 to 99, non-commercial use
Sensitivity:
NON-COMMERCIAL
COMMERCIAL

0.15 uV/ Display Division
0.5uV/ Display Division (Class III/IIIL/IIIHD)
Divisions: 100 to 240,000 (NON-COMMERCIAL USE)
100 to 10,000 (Class III/IIIL/IIIHD)
Internal Resolution: 1 in 16.777.216
Tare Capacity: Scale Capability
Sample Rate: 1 to 100 samples per second (selectable)
Auto Zero Range: 0.5 or 1 through 9 divisions
Keypad: Color Coded Capacitive Touch type, 7-Keys
Standard I/O: (1) bi-directional RS232 serial
