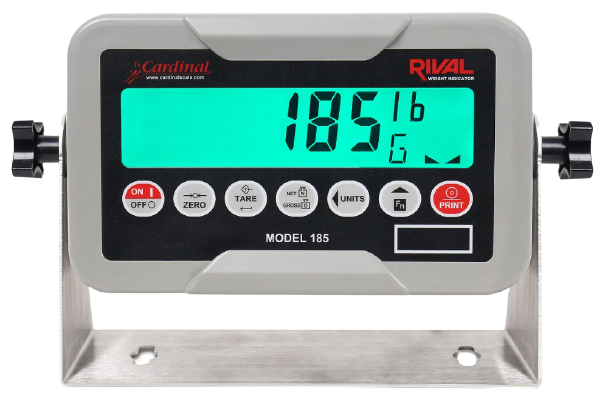

185 Rival Economic Weighing Indicator

Cardinal Scale’s 185 Rival is a high-quality, economical durable weight indicator with bright-green LCD for easy viewing. The washdown IP66-rated attractive molded ABS enclosure is built for durability in harsh indoor or outdoor weighing applications. Also available with rechargeable battery power, the model 185B is powered by six standard, off-the-shelf AA Alkaline or rechargeable Ni-Cad or NiMH batteries. Internal battery circuitry automatically detects the battery type for charging.

The 185 Rival may be used as a remote display for long-range viewing when connected to another weight display. The 1-in/25-mm high bold green LCD is visible from a distance. The 185 indicator comes with a versatile stainless steel swivel mounting bracket for desktop or wall-mount set up. The 185’s anti-slip mounting bracket includes rotational lock-in set points adjustable in discrete 15º increments for exact positioning of the display right where you want it. It features RS232 serial output with waterproof gland connectors for connectivity with a PC or printer. The watertight power connector meets washdown requirements.

Read more

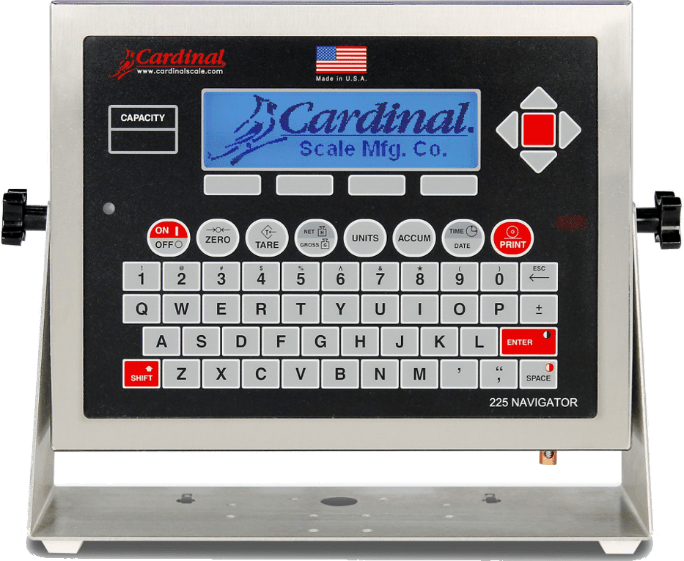

225 Navigator

The electronic weighing indicator 225 is ideal for weighbridges and a variety of other high demand weighing applications. Can be simultaneously connected with up to 3 individual scaling platforms and individually display the weight of each scale.

It is equipped with a transflective technology 25mm back-lit LCD, with 1-inch high characters to be viewed under any lighting conditions from direct sunlight to total darkness. Multi-point calibration in order to avoid linearity errors due to the load cells or the platform’s construction.

Read more

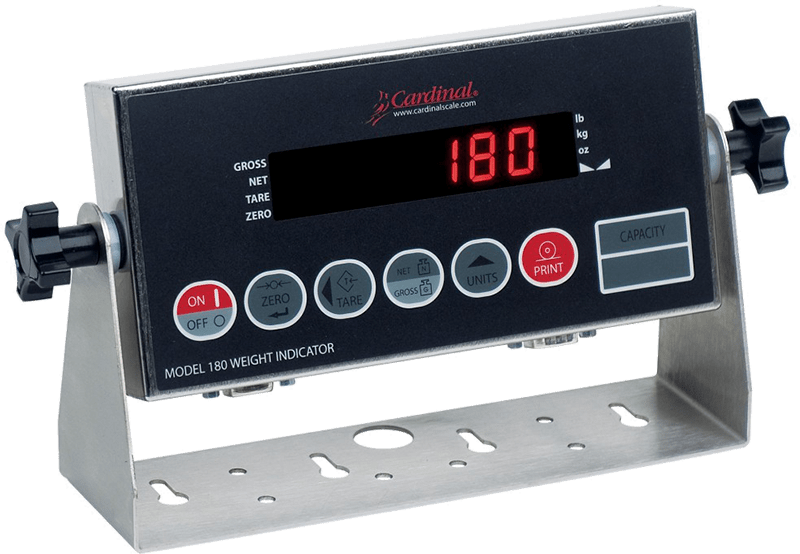

180 Electronic Weighing Indicator

Cardinal’s model 180 digital weight indicator is an economical choice for use with floor scales or other weighing applications utilizing up to four load cells.

The 180 features RS232 bi-directional serial connectivity for output to one label/ticket printer or to a PC. Equipped with a 6-digit bright-red LED display with a 14mm height and 6 key-keypad that allows easy operation for a variety of weighing tasks including: Gross, Tare, and Net conversion.

Read more

CTZ-52 Smart Weighing Indicator

Available in a plastic 94 X 94 mm box with a rabbet for easily installing it in the frame of any board. Display of 5 digit LED, 7-segment, waterproof membrane with keys, 5 set points with an A 3 relay output, 2 isolated inputs. Calibrated using the keypad. Can be connected with a PLC or PC through RS232 or RS485 Modbus. Can directly power up to 4 load cells. CE Certified.

Read more

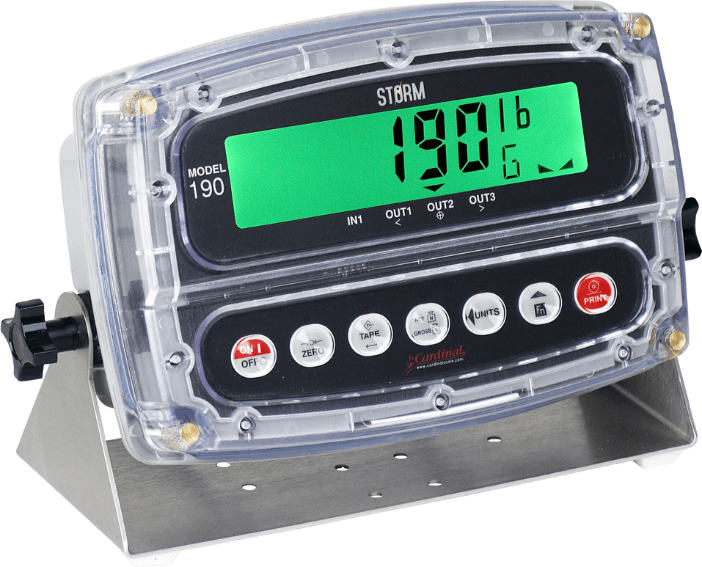

190 Storm Wash-Down Indicator

Built for extreme-use applications in the weighing industry, the 190 STORM’s IP69K-rated polycarbonate enclosure withstands high-temperature (up to 176º F / 80º C), high-pressure wash downs (1450 PSI).

The 190 STORM features capacitive touch keys, 25 mm-high clearly visible LCD digits, built-in RS232 communications port, and versatile power options: AC, DC, and rechargeable battery. Perfectly suitable for the food, chemical and pharmaceutical industries.

Read more

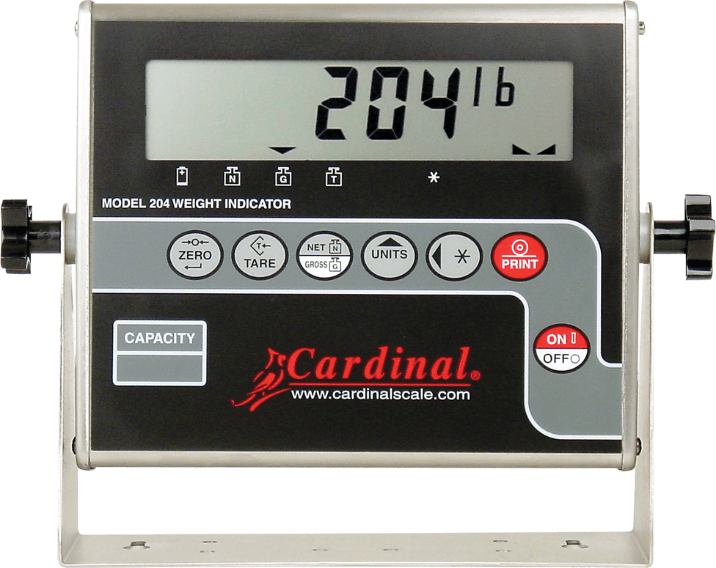

204 Storm

Ideal for floor and bench scales, the 204 indicator features a large LCD for high visibility. Selectable weight units, along with Gross, Tare, and Net conversion functions as well as metric conversion make this indicator suitable for many applications. Whether a static installation or a portable scale, the 204 can be powered up to 3 ways: AC, Alkaline batteries, or rechargeable Ni-Cad batteries that charge via a built-in battery charging circuit.

A bi-directional RS232 serial port, custom label/ticket format, auto shut-off and sleep modes to conserve battery power allows you to tailor the 204 to your needs.

The 204 STORM features a stainless steel enclosure as well as an incorporated Ni-Cd battery recharger.

Read more

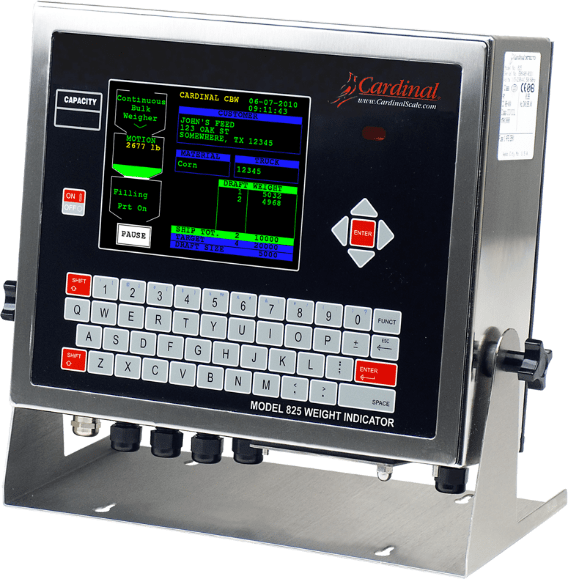

825 Spectrum

Cardinal’s 825 Spectrum is not an indicative weighing instrument, but instead an independent programmable industrial weighing computer. It features a full-color 640 x 480 pixel back-lit LCD touchscreen display and stainless steel enclosure commanding 64 MB of memory combined with massive connectivity via 4 bi-directional RS232 serial ports, 110/100 Base-T Ethernet port, 2 USB A host ports, and 1 USB B device port, there is no end to this indicator’s potential.

Up to 8 operators may be programmed for use. Other features include a time/date function, adjustable filtering, Gross, Tare, and Net conversion, QWERTY keypad and navigation keys, as well as 4 inputs and 4 outputs along with a DeviceNet/ICAN port.

Read more
