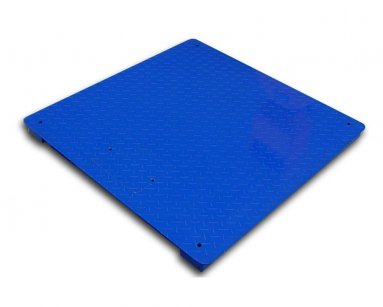

Low Cost Mild Steel VWXtra Platform Scale

Low cost platform with 4 stainless steel Load Cells, OIML, IP67, Powder Coated Finish. It is placed on four high adjustable stainless steel rubber based mounting feet. Rated weighing capacity ranging from 150Kg to 3.000Kg.

The Low Cost Mild Steel Platforms VWXtra are available in standard dimensions and capacities. As a result they are provided at competitive prices and with a short delivery time.

TECHNICAL SPECIFICATIONS

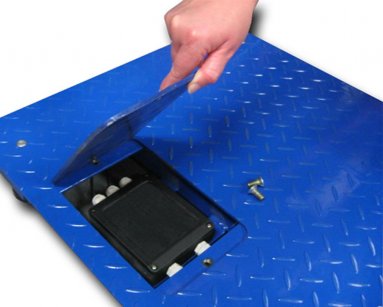

Powder Coated Finish, IP67 Rated and OIML Approved Load Cells, 4,5mm channel durbar top plate for easily accessing the Load Cells junction box. Ramps or a Pit Frame can be optionally included for all dimensions.

Available Dimensions 600mm x 600mm, 1000mm x 1000mm, 1250mm x 1250mm, 1500mm x 1250mm, 1500mm x 1500mm
Platform Height ≈80mm
Capacity Options 100kg, 150kg, 300kg, 600kg, 1000kg, 1500kg, 2000kg, 3,000kg
Construction Mild Steel ST37, 100 x 100 x 5cm Channel Frame with 4,5mm durbar top plate, Professional tough powder-coated finish
Load Cells 4 x Zemic H8C from Stainless Steel, 5m steel armored braiding high quality cable, OIML Certified & IP67 Protection Rate
Junction Box VWJB4P, IP65, Sealed junction box and summing board
Load Cell Feet Height Adjustable, stainless steel rubber based mounting feet

OPTIONAL EQUIPMENT

  • Pit frame for underfloor installation
  • Guides for Clark forks for easy transportation
  • Paint in your preferred RAL color
  • Ramps for easy access
  • Smooth instead of durbar top plate
