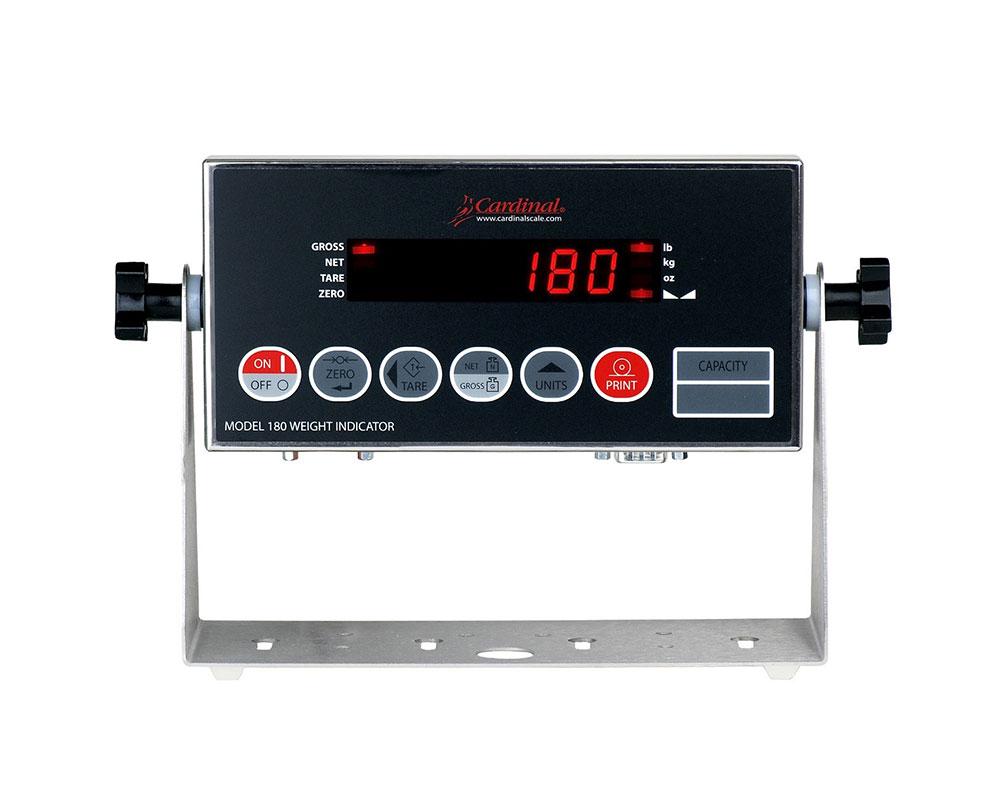

180 Electronic Weighing Indicator

Cardinal’s model 180 digital weight indicator is an economical choice for use with floor scales or other weighing applications utilizing up to four load cells.

The 180 features RS232 bi-directional serial connectivity for output to one label/ticket printer or to a PC. Equipped with a 6-digit bright-red LED display with a 14mm height and 6 key-keypad that allows easy operation for a variety of weighing tasks including: Gross, Tare, and Net conversion.

SPECIFICATIONS

Power Requirements: 12 VDC through a listed 220 V Power Supply
Enclosure Construction: 304 Stainless Steel
Enclosure Size: 196mm W x 96 mm H x 33mm L
Enclosure IP Rating: IP40
Weight: 950 gr
Operating Conditions: Operating Temperature: -10 to +40°C
Operating Humidity: 90% non-condensing (maximum)
Display: 6 Digit LED, 7-Segment, 14 mm height
Transducer Excitation: 8 VDC
Signal Input Range: From -0.6mV/V to +3 mV/V
Number of Load Cells: Up to 4 each 350 ohm
Load Cell Cable Length: 10m maximum
Division Value: 1, 2, 5, 10 or 20 x 1, 0.1, 0.01, 0.001
Sensitivity, Maximum: 1.28 uV/division displayed
Resolution: 5000 Divisions (Aproved), 10.000 Divisions (non-Approved)
Sample Rate: 1 ως 16 Samples per Second (Selectable)
Auto Zero Range: 0 to 18 by 0.5 Divisions
Keypad: Color Coded Membrane, 6 Keys
Communication: (1) bi-directional RS232
