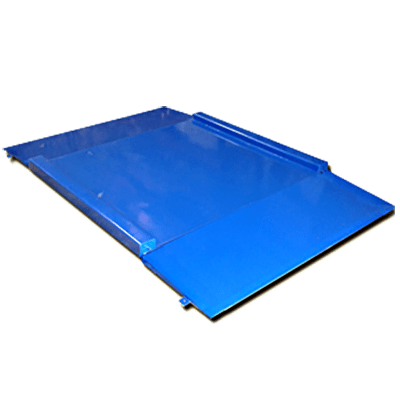

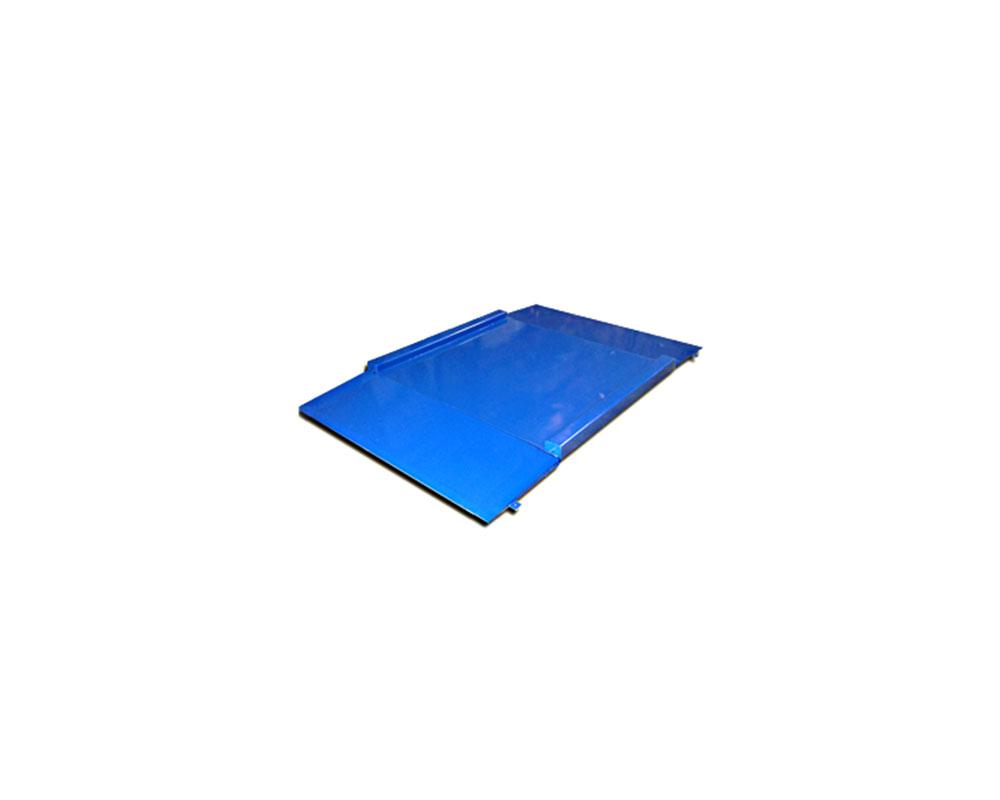

Drive-Through VWDΤ/E Platform Scale with Two Seperate Ramps

The VWDT/E Platform Scale is equipped with separate ramps from both sides. ST-37 construction type platform, Powder Coated Finish, 4 stainless steel Load Cells, OIML, IP67. It is placed on four high adjustable stainless steel rubber based mounting feet. Rated weighing capacity ranging from 150 to 2.000Kg.

The VWDT/E Platform Scales have a height of only 40mm and are equipped with two separate ramps, one for entry and one for exit.

TECHNICAL SPECIFICATIONS

Available Dimensions 800mm x 800mm, 1000mm x 1000mm, 1250mm x 1250mm, 1500mm x 1500mm
Platform Height ≈40mm
Capacity Options 100kg, 150kg, 300kg, 600kg, 1000kg, 1500kg, 2000kg
Construction Mild Steel ST37, 120mm Channel Frame with durbar 5mm top plate, Professional tough powder-coated finish
Load Cells 4 x Flintec SLB14 from Stainless Steel, 5m steel armored braiding high quality cable, OIML Certified & IP67 Protection Rate
Junction Box VWJB4P, IP65, Sealed junction box and summing board
Load Cell Feet Height Adjustable, stainless steel rubber based mounting feet
Ramp Width Separate, 300mm from each side
