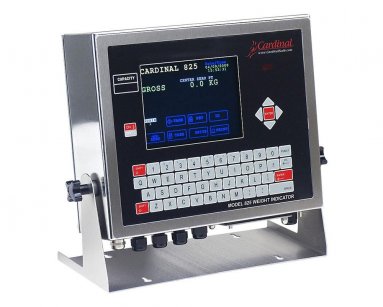

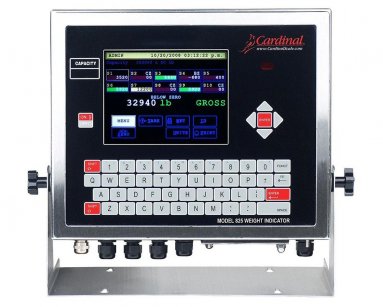

825 Spectrum

Cardinal’s 825 Spectrum is not an indicative weighing instrument, but instead an independent programmable industrial weighing computer. It features a full-color 640 x 480 pixel back-lit LCD touchscreen display and stainless steel enclosure commanding 64 MB of memory combined with massive connectivity via 4 bi-directional RS232 serial ports, 110/100 Base-T Ethernet port, 2 USB A host ports, and 1 USB B device port, there is no end to this indicator’s potential.

Up to 8 operators may be programmed for use. Other features include a time/date function, adjustable filtering, Gross, Tare, and Net conversion, QWERTY keypad and navigation keys, as well as 4 inputs and 4 outputs along with a DeviceNet/ICAN port.

The 825 Spectrum features 2 ColdFire® processors along with multiple weighing applications and communication routines pre-installed in its 64MB standard memory. There is plenty of space to even program your own application.

It comes with 10 available slots for up to 10 expansion cards. Up to 10 individual scales can be managed, resulting in 46 Load Cells with 14 maximum Load Cells per scale.

Using the 825 Spectrum, up to 10 individual weighing applications (ex. silo) can be simultaneously read, while the 10 weighing indications are displayed on its screen and the data is quickly transported via Ethernet (TCP/IP or EIP) to your network. You can also easily receive automatic email notifications to up to 3 different users per scale by determining the limits you wish to pay attention to.

NTEP legal-for-trade and OIML certified.

SPECIFICATIONS

Power Requirements: 90/264 VAC, 50 or 60 Hz.
Enclosure Type: 304 Stainless Steel
Enclosure Rating: IP66
Operating Conditions: Operating Temperature: -10 to +40°C
Operating Humidity: 90% non-condensing (maximum)
Display Resolution: 640 x 480 (133 mm x 102 mm) pixel matrix color backlit LCD
Display Size: 304 mm W x 274 mm H x 100 mm D
Signal Input Range: From 1 mV min. to 33 mV max.
Transducer Excitation: 10.85 VDC
Number Of Load Cells: Up to 14 per SIB / 48 - 350 ohm Load Cells total. Up to 10 weighing cards and up to 46 Load Cells
Division Value: 1, 2, 5 or 10 x 1, 0.1, 0.01, 0.001 ή 0.0001
Sensitivity: 0.7 uV / Display Division (OIML)
Divisions: Up to 10.000 Divisions OIML (CLASS III)
Sample Rate: 1 to 200 samples per second (selectable)
Auto Zero Range: 0.5 or 1 through 9 divisions
Keypad: Membrane type with 52 color-coded keys and touch screen display with multiple programmable soft keys
Standard Ι/Ο: 1 Χ  bi-directional RS-232 port
1 Χ  bi-directional RS-232/20mA port
1 Χ bi-directional RS-232/RS485 port
1 Χ DeviceNet/ICAN port
4 Χ isolated inputs and 4 Χ isolated outputs
1 Χ 10/100 Base-T Ethernet port (TCP/IP or EIP)
2 Χ USB A host port
1 Χ USB B device port
